SOL-5M4 Combo

Mecer Axpert 5.6K MKS IV Inverter + 2x Mecer Dyness B3 3.5 kWh Lithium Battery + Battery Cable & Wall mount battery box

Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V Pure Sine Wave MPPT Inverter charger with 2x 3.5kW Batteries, Up to 9 Units Parallel capability, 10 ms transfer time, Pure Sine Wave Waveform, 93% efficiency (Peak), 48 VDC Battery Voltage, 450 VDC Maximum PV Array open Circuit Voltage, 6000 W Maximum PV Array Power, 2x Mecer Dyness B3 3.5 kWh Lithium Battery 48V DC, 1x Battery cable, 1x Wall Mount Rack Mount Box for Batteries

Overview:

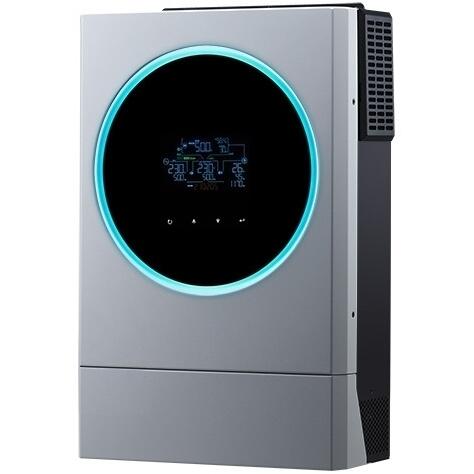

Mecer Axpert 5.6K MKS IV 5600VA 5600W 48V Inverter Charger with 2x Dyness B3 3.5kWh Lithium Batteries
The Mecer Axpert 5.6K MKS IV is a 5600VA / 5600W pure sine wave inverter charger designed for reliable backup power and solar energy applications. With an integrated MPPT solar charge controller, the system can efficiently manage power from a solar array while charging a 48V battery bank.

This complete package includes the Axpert MKS IV inverter together with two Mecer Dyness B3 3.5kWh lithium batteries, providing a total nominal battery storage capacity of 7kWh. The inverter supports up to 6000W of solar PV power and can operate in parallel with up to nine units, making it suitable for applications where additional power capacity may be required.

The transformerless inverter design keeps the system compact while providing efficient power conversion. Built-in Wi-Fi also allows users to monitor the system from a mobile device, while stored inverter data makes it easier to track operating conditions and events.

Description:

The Mecer Axpert 5.6K MKS IV combines a 5600W pure sine wave inverter, MPPT solar charging and lithium battery storage into a practical solar backup power solution. Its 48V battery architecture is paired with two Dyness B3 3.5kWh lithium batteries, while the inverter can handle up to 6000W of PV input.

For everyday monitoring, the built-in Wi-Fi function allows the inverter to be accessed through compatible Android and iOS mobile applications. A large 4.3-inch colour LCD and customizable RGB status light ring provide convenient access to system information directly from the unit.

The system also supports USB On-The-Go for parameter updates, data downloads and software updates. A dedicated BMS communication port allows communication with compatible battery management systems, helping the inverter and batteries work together efficiently.

The included Dyness lithium batteries use lithium iron phosphate cells and independent battery management systems. The BMS monitors and manages each battery module, helping support safe operation, effective energy management and long service life.

Features:

Mecer Axpert 5.6K MKS IV Solar Inverter
The Axpert MKS IV uses an MPPT solar charge controller to regulate incoming DC power from the solar panels and maximize the available solar energy for battery charging. Its wide DC input range gives the system flexibility when designing a suitable solar array.

Key inverter specifications include:

• Rated capacity: 5600VA / 5600W
• Battery voltage: 48V DC
• Waveform: Pure sine wave
• Maximum PV array power: 6000W
• Maximum PV open-circuit voltage: 450V DC
• Peak efficiency: Up to 93%
• Transfer time: 10 ms
• Parallel operation: Up to 9 units
• Solar charging: Integrated MPPT controller
• Monitoring: Built-in Wi-Fi with Android and iOS app support
• Display: 4.3-inch colour LCD
• Connectivity: USB On-The-Go
• Battery communication: Dedicated BMS communication port

7kWh Dyness Lithium Battery Storage
Two Mecer Dyness B3 3.5kWh lithium batteries are supplied with the system, providing a combined nominal storage capacity of 7kWh. The 48V DC battery modules are designed to work with the inverter as part of the complete solar power system.

Each battery incorporates an independent BMS for intelligent monitoring and management of the battery pack. Lithium iron phosphate cells provide a stable battery chemistry, while the compact module design helps make installation and system integration more practical.

Battery package includes:

• 2x Mecer Dyness B3 3.5kWh lithium batteries
• Total nominal storage capacity: 7kWh
• Battery voltage: 48V DC
• Independent BMS per battery module
• Lithium iron phosphate battery cells
• 1x Battery cable
• 1x Wall mount rack mount box for batteries

Solar Monitoring and System Management
The built-in Wi-Fi capability makes it possible to monitor the inverter from a compatible mobile application. Users can check operating information without needing to access the inverter directly, which is useful when the system is installed in a dedicated utility or equipment area.

The inverter can also store operational data and events internally. USB On-The-Go support provides additional options for downloading data, rewriting internal parameters and applying software updates.

Expandable Parallel Operation
For installations that require more capacity, the Axpert MKS IV supports parallel operation with up to nine units. This allows compatible systems to be expanded beyond the capacity of a single inverter, subject to the appropriate system design and installation requirements.

Complete Mecer Solar Backup Package
This Mecer Axpert package provides a combination of solar conversion, battery charging and lithium energy storage in one system. The 5600W inverter is suitable for backup power applications where a pure sine wave output and solar charging capability are required, while the two 3.5kWh batteries provide substantial energy storage for connected loads.

The included part number / SKU for this complete package is SOL-I-AX-5M4.

Whats' include

• Mecer Axpert 5.6K MKS IV 5600VA / 5600W 48V inverter charger
• 2x Mecer Dyness B3 3.5kWh 48V lithium batteries
• 1x Battery cable
• 1x Wall mount rack mount box for batteries

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SOL-5M4 Combo
Inverter
MODEL	Axpert MKS IV 5600-48
Rated Power	5600VA/5600W
Parallel Capability	Yes, up to 9 units
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range	55/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	5600 VA
Efficiency (Peak)	93%
Transfer Time	10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum PV Array Power	6000 W
MPPT Range @ Operating Voltage	120 VDC~430 VDC
Maximum Solar Charge Current	120A
Maximum AC Charge Current	120A
PHYSICAL
Dimension, D X W X H (mm)	140 x 295 x 468
Net Weight (kgs)	12
Communication	USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Operating Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10degreesC to 50degreesC
Storage Temperature	-15degreesC to 60degreesC
Battery
Nominal Energy	3.552kWh
Nominal Capacity	74Ah
Nominal Voltage	48V
Max. Continuous Discharge Current	50A
Max. Continuous Charge Current	50A
Charging Cut-Off Vol	54V
Discharging End-Off Vol	40.5V
Net Weight	30kg
Dimensions (W*D*H)	480*360*133.5mm
Protection Level	IP20
Calendar Life	6000 Cycles
Charging Temperature Range	0~50ºC
Discharging Temperature Range	-20~50ºC
Communication	CAN / RS485
Configuration	up to 142kWh total energy, 40 modules parallel at most
Recommend C Rate	0.5C
