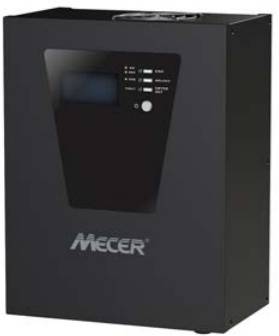

IVR-2400MPPT

Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in

Mecer - Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery
No stock at suppliers. print


Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. IVR-2400MPPT Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in is available from Mecer Laptops and it is sold as new from our Inverters range of products. For reference purposes, the price of R3445 is valid 2022-08-14, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Inverters category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

IVR-2400MPPT

Mecer 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in

Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery

Features:

  • Simulated sinewave inverter
  • Wide input voltage range
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • MPTT

Mecer 2400VA / 1800W 24V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-2400MPPT

External Batteries Required

Features

  • Simulated sinewave inverter
  • Wide input voltage range
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • MPPT


Specifications:

  • Model: IVR-2400MPPT
  • Capacity: 2400VA / 1800W
  • Power Factor: 0.75

Input:

  • Voltage 220-240 VAC
  • Voltage Range 90-280 VAC
  • Nominal Operating Frequency 50/60Hz
  • Maximum Input Current 13A

Output:

  • Nominal Output Voltage 220-240 VAC
  • Voltage Regulation (Batt. Mode) +/-10%
  • Output Frequency Range 50/60Hz
  • Nominal Output Current 10.4A
  • Inrush Current 13A
  • Maximum Output Fault Current 13.6A
  • Transfer Time 20 ms typical
  • Waveform Simulated Sine Wave

Battery:

  • Battery Voltage 24 VDC
  • Maximum Battery Discharging Current 90A
  • Floating Charge Voltage 27.4 VDC +-1 VDC

CV Charging Voltage

  • Lead Acid Battery 28.6VDC +-1VDC
  • Lithium Battery 29.2 VDC +-1 VDC
  • Cut Off Voltage 21.0 VDC +-1 VDC
  • Maximum AC Charging Current 10 A or 25 A

Solar Charger:

  • Solar Charger Type MPPT
  • Maximum PV Array Open Circuit Voltage 100 VDC
  • MPP Range @ Operating Voltage 30 ~ 80 VDC
  • Max. PV array Input Power 1650W
  • Max. PV array Power to support 1320W
  • Maximum Solar Charging Current 55 A
  • Maximum Charging Current (Utility +SCC) 55 A

Physical:

  • Dimension (DxWxH) mm 272 x 212 x 127
  • Net Weight (kgs) 4.8
  • Protective Class I
  • Ingress Protection Rating IP20


Environment:

  • Humidity 0 ~ 90% RH (No condensing)
  • Operating Temperature 0 ~ 55degC
  • Altitude 0 ~ 1000 m
